Oil System Take Off Plate - Ford 2.3L EcoBoost

The Mountune oil take-off plate is a convenient way to plumb in a remote oil filter housing or other oil system components. This product also allows an in-line oil cooler to be fitted and is a perfect addition to our dry sump system.

Plates are supplied with motorsport-grade O-rings to seal the plate to the block in place of the OEM filter housing. The housing also has a pressure sensor take-off which uses a 1/8 NPT thread, plug included.

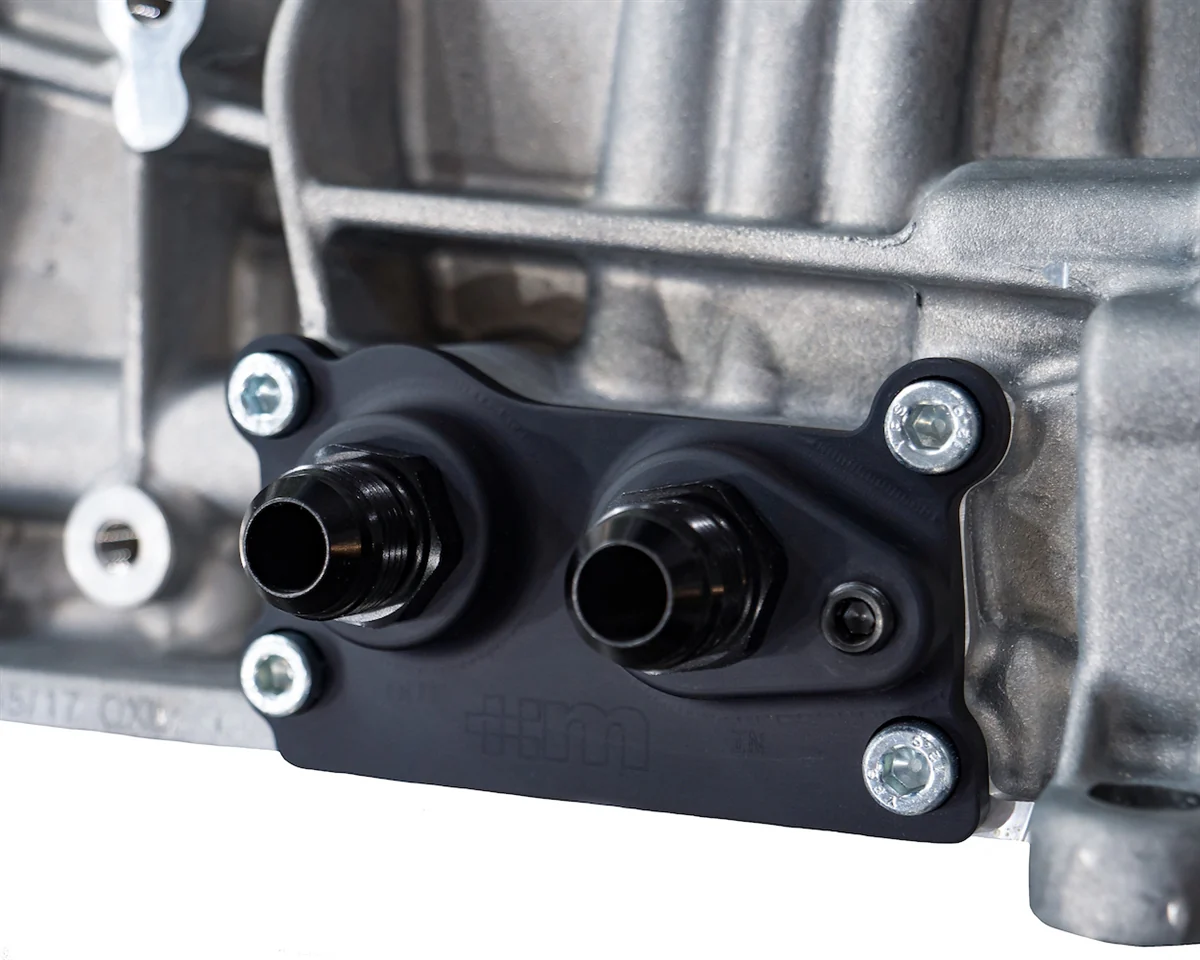

The plate bolts directly to the 2.3L EcoBoost engine block and is ideal for installations with a limited amount of packaging space. As used in many of our motorsport applications.

Features:

• Billet oil take-off plate with hard anodized finish
• High temp BUNA-N O-rings
• 10AN Fittings with Viton O-rings

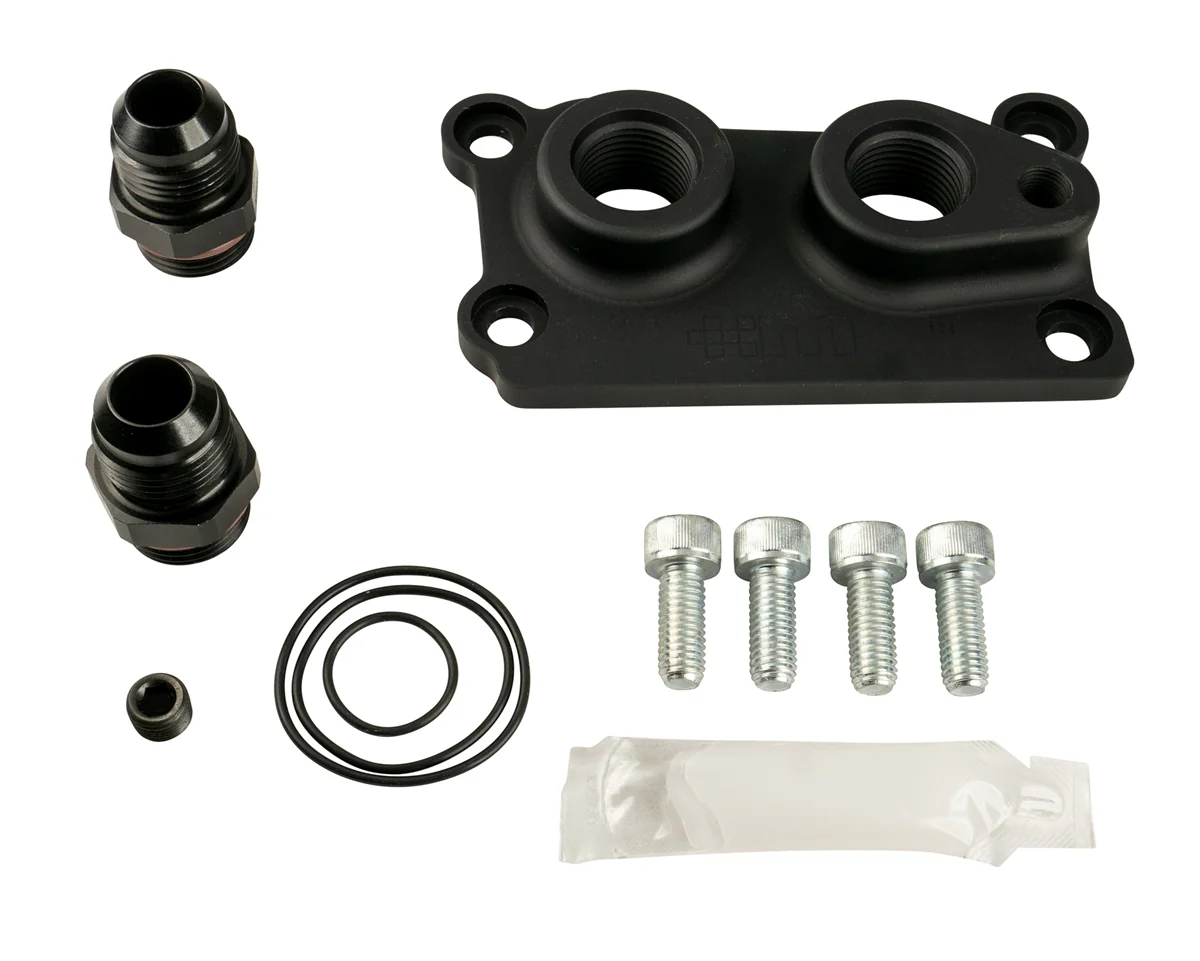

Includes:

• Take-off plate
• BUNA-N O-rings
• 10AN ORB to 10AN Male Fittings
• 1/8 NPT plug
• Installation hardware
• O-ring assembly lube
